18 November, 2016

Boliden Aitik mine

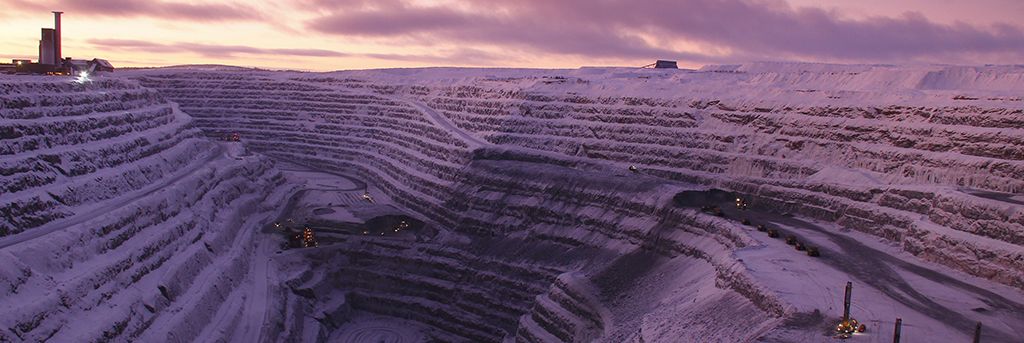

Boliden Aitik winter landscape

Xore customer case Boliden, Aitik mine

In the northern parts of Sweden, near Gallivare, lies the Boliden Aitik mine. It was first established in 1968, and has since then grown to be Sweden’s largest copper mine, milling over 36 Mtons of ore in 2015. From the ore some 67.000 tonnes of copper was extracted along with byproducts of silver and gold. Aitik's productivity is higher than any other copper mine in the world. The company has invested in a Xore on-stream analyzer at Boliden, Aitik mine.

The low head grade of copper sets the requirements for the analyzer. First of all the detection limits need to be well below the average grade to cover the full range of process variations. Another challenge is that the analyzer has to give consistent measurements even with a weak signal from a highly diluted sample. With a high production pace all this has to be fulfilled at a equally high pace from the online analyzer in order to be able to achieve a proper process control, whether it is manual or automatic.

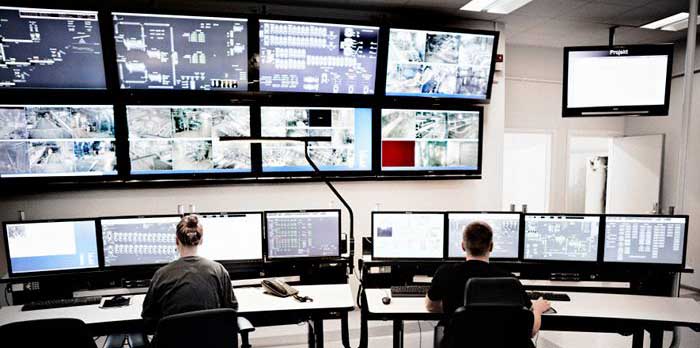

Boliden Aitik control room, data from Boxray XRF analyzer is presented on the screens and forms the foundation for process control

Great challenge for the Xore on-stream analyzer at Boliden

Boliden Aitik concentrator plant has a high copper recovery of some 85-90 %. With a low head grade and high recovery there is very little copper left in the tailings, about 0.02 – 0.05 %. This is a challenge to measure for an on-stream analyzer but the Boxray analyzer’s energy dispersive detector enables very low detection limits and reliable measurements even at these low grades.

The final product is a copper concentrate typically consisting of 25 % copper, 250 g/t silver and 8 g/t gold. The extreme difference in magnitude between the concentrate and head grade and tailings introduces a risk of contamination from the concentrate to the other samples. The Boxray 24 eliminates this risk by having separate sample loops and measurement cells for each sample stream. The Boxray Compact uses two measurement cells so high grade samples are kept in one cell and low grade samples in the other cell. These features are unique to the Boxray on-stream analyzers.

Boxray 24 in duty

The flotation circuit is monitored with a single Boxray 24 on-stream analyzer. Process control is based on a large array of sample streams and accurate process data from the online analyzer being updated frequently.The control room in Boliden Aitik relies on a single analyzer to provide them with process data. Other mines of this size often have to use multiple analyzers in order to achieve acceptable performance and an acceptable level of availability.

The Boxray 24 has on it’s own high enough capacity to do the job sufficiently fast and accurate. With a service program consisting of preventive maintenance on a regular basis the availability is maximized.

“To run an operation of this scale and dignity with a single Xore on-stream analyzer at Boliden, Aitik says a whole lot about the analyzers performance and reliability“ says Mikael Normark, CEO of Xore.

Boxray 24 online XRF instrument, used in some of the word's most productive and profitable mines. XRF analysers from Xore.

Facts and figures, Boliden Aitik mine.

Boliden Aitik

Production

Head grade

Ore

36.400 ktonnes



Copper

67 ktonnes

0.21 %

Silver

61.500 kg

2.45 g/t

Gold

2.000 kg

0.11 g/t
